Featured Article: Next Generation Power Semiconductor: What is GaN / SiC ? Sanken and Next Generation Semiconductors

Table of Contents (Bottom of This Page)


Part 1. Compound Semiconductors: What Are SiC and GaN?

SiC and GaN: Their Characteristics Are Superior


Semiconductors Then and Now ― From Germanium to Silicon

The history of semiconductors dates to the introduction of a point-contact transistor around 1950. Germanium was a then-primary material for semiconductor products, but at a later time, silicon with superior characteristics took the place of germanium and has remained in wide use until today.
Silicon semiconductor products have evolved over time, with the precision improvement of semiconductor manufacturing equipment and the optimization of device structures and wafer processes. This contributed significantly to downsizing and advancing electronic products in our daily lives.
On the other hand, especially in the power semiconductor field, there have been advances in the element developments and practical applications using compound semiconductors whose physical property values greatly exceed those of silicon-based semiconductors.

Transition of semiconductor materials


SiC and GaN: Compound Power Semiconductors Yield Lower Losses Than Si


From the background mentioned above, the materials such as SiC (silicon carbide) and GaN (gallium nitride) have recently been receiving increased attention.
Silicon is a single chemical substance; in contrast, SiC is a compound of carbon with silicon, and GaN is a compound of gallium with nitrogen. For this reason, the semiconductors produced using these compounds are called “Cmpound Semiconductors.”
Moreover, SiC and GaN provide bandgaps wider than that of silicon (Si: 1.1 eV, SiC: 3.3 eV, GaN: 3.4 eV), so they are also called “Wide-Bandgap Semiconductors.”
The wide-bandgap semiconductors are characterized by high dielectric breakdown field strength, thus allowing the breakdown voltage same as silicon with a withstand voltage layer much thinner than that of silicon.
With great expectations to be a role to lead future generations, these semiconductors are sometimes called “Next-Generation Power Semiconductors,” too.

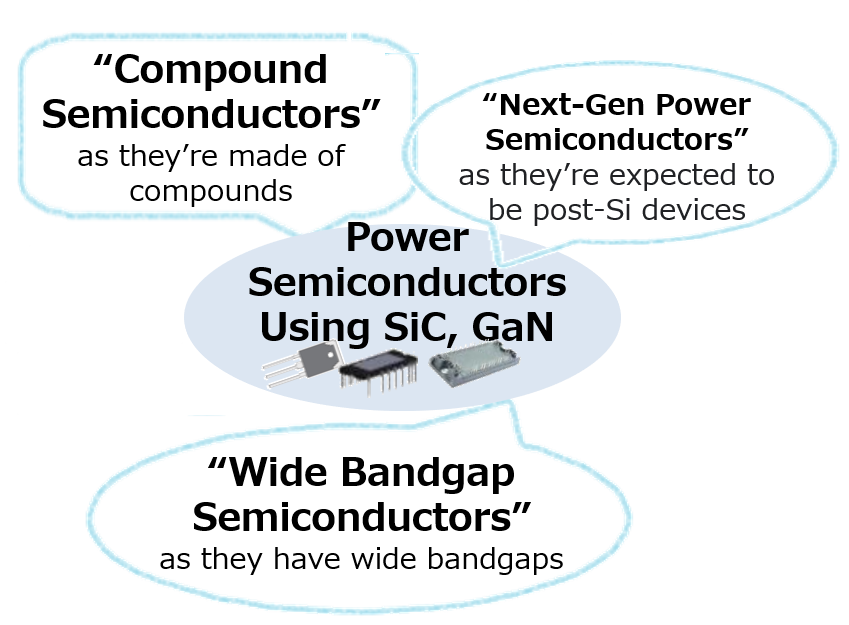

GaN, SiC power semiconductors with various names


SiC and GaN: Their Physical Characteristics Are Excellent

Compared to silicon, SiC and GaN—not only as wide-bandgap semiconductors but also as materials themselves—have revealed their outstanding performance levels in the figure of merit (εμeEc3): SiC is 440 times greater, and GaN is 1130 times greater.
To fully utilize these materials, peripheral technologies have been currently under further development. Replacing conventional silicon-based semiconductors with SiC- or GaN-based compound semiconductors will enable more compact and efficient electronic equipment.

In recent years, improvements in the quality of SiC wafer substrates used in semiconductor materials have led to the use of wafers with larger diameters. Accordingly, high-current and low-cost devices have been introduced and are beginning to be adopted in many pieces of equipment.

But, a GaN wafer substrate is still expensive, so a low-cost silicon wafer substrate, having a horizontal structure with a GaN active layer formed on, is generally adopted. This makes it difficult to fabricate a high-current product; however, GaN has been used in more and more applications that require extremely fast switching operations through process miniaturization.

Characteristics of silicon, SiC, GaN elements

Application Ranges Where Si Devices Are Possibly Replaced with SiC / GaN Devices

Application Ranges of Si, SiC, GaN Devices by Power Capacity and Operating Frequency

SiC Device Has Advantages in Motor Drives and Other High-Voltage / High-Current Applications

SiC is a compound which replaces the half of silicon with carbon. Carbon and silicon are tightly bonded, and its crystal structure is more stable than a single crystal silicon. Therefore, SiC has high dielectric breakdown field strength and thus makes the active layer very thin. This enables a device with a higher breakdown voltage and a lower loss than those of conventional silicon devices.
SiC devices are becoming increasingly popular in the areas of high current and high withstand voltage, as a replacement for silicon IGBTs.
Specifically, they are expected to expand in the area of 10 kW or more, where there are great advantages in manufacturing smaller and lighter systems, including power conditioners for power generation systems, HEMS for electric homes, and electric vehicles (EV).

GaN Device Has Advantages in Switching Power Supplies and Other Compact / High-Frequency Applications

GaN has an even more stable bond structure and higher dielectric breakdown field strength than SiC.
At present, a GaN device typically consists of a GaN active layer formed on a silicon substrate. GaN devices therefore cannot have breakdown voltages as high as SiC devices do, but they are still suitable for high-frequency applications. When it comes to switching power supplies, by letting them switch at a high frequency, it is possible to downsize inductors and other peripheral components.
GaN devices are expected to be applied in power supplies of 1 kW or less, in fields where compact designs are highly demanded.
For example, GaN devices are expected to be used as a power source for base stations of the 5th generation mobile communication systems (5G), whose market expansion is being anticipated in the years to come.
The establishment of the USB Power Delivery (USB-PD) standards also allowed chargers to receive and supply a power up to 100 W through USB cables. As a result, more and more chargers (for smartphones, laptop computers, etc.) have become standardized.
Compact smartphone chargers are long-preferred products, so there has been a demand to provide chargers that will quick charge as well as can support medium-sized electronic equipment like a laptop computer, without changing their current sizes. GaN devices are then here to realize such demand in an optimal manner and are likely to accelerate their expansion into many applications in the future.

Semiconductors in the Future — Sanken’s SiC Devices

Sanken Electric has currently been developing SiC-based semiconductor devices.
In addition to low switching noise, which is known as one of SiC characteristics, our SiC Schottky diodes will have enhanced surge current tolerance and bring higher safety.
This development also includes SiC MOSFETs with significantly reduced loss and low noise, and the IPM products (800V, 1200V) that incorporate these SiC MOSFETs.

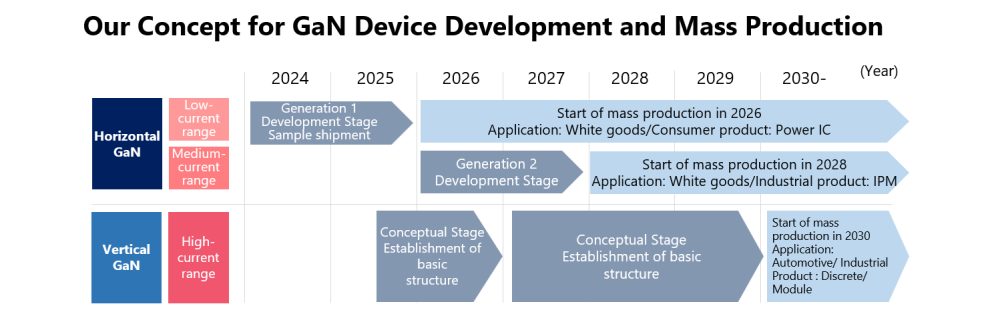

Click below to contact us about our products
Inquiry Button


Next PagePart 2. Applications Where SiC and GaN Devices Are Expected to Be Used
  In the following page, we will introduce nine applications where next-generation power semiconductors are expected to be adopted.
