SX68128MA

Package Image

Package : SOP36

RoHS : YES

Data Sheet(874KB)
Check Online Stock

The SX68128MA is a high voltage 3-phase motor driver driven by a sinusoidal control, which can support Hall element and Hall IC inputs, thus offering high-efficient yet low-noise motor control. Supplied in a thin SOP36 package, where a controller, a gate driver, the output transistors of three phases, and bootstrap diodes are highly integrated, the SX68128MB requires only a few external components for building a motor driver. This also allows a motor driver to be highly reliable in performance and design-friendly with its compactness. The product can optimally control the inverter systems of low- to medium-capacity motors that require universal input standards.

Data Download

Features

    • Low Noise, High Efficiency (Sinusoidal Current Waveform)
    • Reduced Number of Parts Achieved by Built-in Bootstrap Diodes with Current-limiting Resistors
    • Pb-free (RoHS Compliant)
    • Hall Element and Hall IC Inputs
    • Using a Single Shunt Resistor
    • Application-specific Optimal Settings with External Signals:
      – Motor Speed
      – Phase Adavance Angle
      – Motor Direction
      – User-settable Motor Lock Detection (Enabled or Disabled)
    • 5 V Reference Voltage Output
      (Used for Driving Hall Elements etc.)
    • Fault Signal Output at Protection Activation (FO Pin)
    • Protections Include:
      – VREG Pin Undervoltage Lockout (UVLO_VREG)
      – Undervoltage Lockout for Power Supplies
      VBx Pin (UVLO_VB)
      VCC1 Pin (UVLO_VCC)
      – Overcurrent Limit (OCL)
      – Overcurrent Protection (OCP)
      – Thermal Shutdown (TSD)
      – Motor Lock Protection (MLP)
      – Reverse Rotation Detection
      – Hall Signal Abnormality Detection

Application

For motor drives such as:
  • Fan Motor for Air Conditioner
  • Fan Motor for Air Purifier and Electric Fan

Specifications

Type Power IC
Breakdown Voltage 600 V
Output Current 1.5 A
RDS(ON) max./
VCE(SAT) typ. 		3.6Ω
Output Element MOSFET
Input Threshold ― V
UVLO YES
Overcurrent (OCP or OCL) OCP/OCL
Temperature Detection Thermal Shutdown
Fault Signal Output YES
3 Shunt Support NO
Bootstrap Diode Built-in
Simultaneous On-state Protection NO
Reg Output YES
Package Weight (Typ.) 1.4 g
Automotive Qualified NO

Remarks

SX6812xMA Series
VDSSIOPart Number
600 V1.5 A
2.0 A		SX68128MA
SX68127MA

Typical Application

Typical Application

Block Diagram

Block Diagram

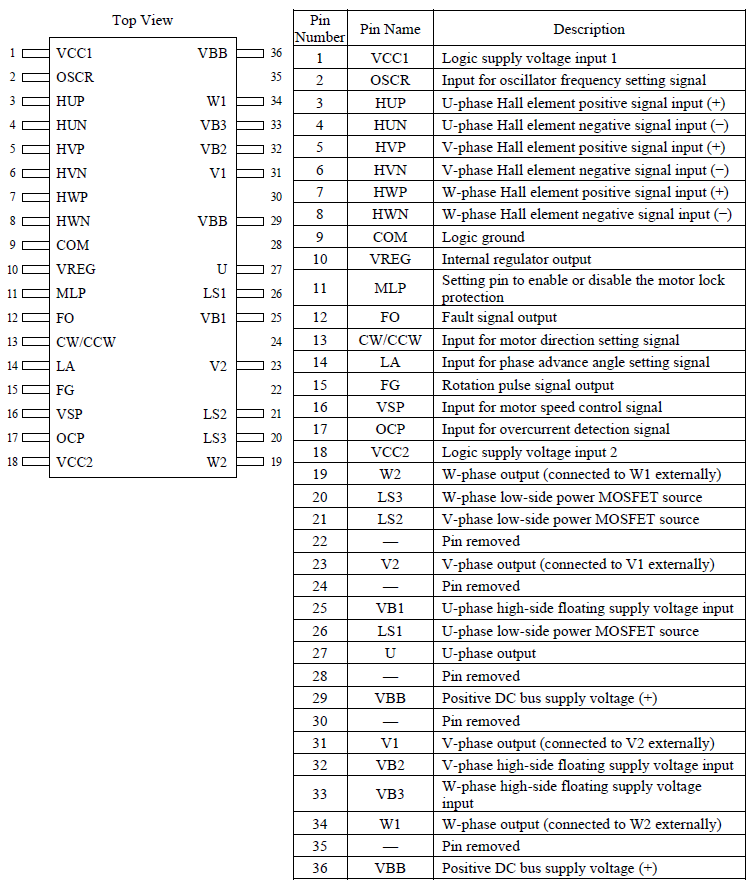

Pin Configuration Definitions

Pin Configuration Definitions

Physical Dimensions

Physical Dimensions
