ACTIVE

SMA6824MH

SLA/SMA6820MH series are high voltage 3-phase motor driver ICs in which transistors, pre-driver ICs (MICs), and bootstrap circuits (diodes and resistors) are highly integrated. You can select from the fully-molded type or the heatsink-type ZIP24 package according to your mounting condition.
SLA/SMA6820MH series are optimal for the inverting control of small to middle power motors.

Design Support

Related Documents

■3D CAD Data
■Other

See More

Close

Features

    ・Built-in Bootstrap Diodes with Current Limiting Resistors (22 Ω)
    ・CMOS-compatible Input (3.3 or 5 V)
    ・Fault Signal Output (FO pin)
    ・7.5 V Regulator Output
    ・Bare lead frame: Pb-free (RoHS compliant)
    ・Protections
       Undervoltage Lockout for Power Supply
       High-side (UVLO_VB): Auto-restart
       Low-side (UVLO_VCC): Auto-restart
       Thermal Detection (TD): Fault Signal Output

Application

    ・Washing Machine Fan Motor and Pump Motor
    ・Air Conditioner Fan Motor
    ・Air Cleaner Fan Motor
    ・Fan Motor for Electric Stand Fan

Specifications

Type Power IC
Breakdown Voltage 600.00 V
Output Current 1.5 A
RDS(ON) max./
VCE(SAT) typ.
V
Output Element MOSFET
Input Threshold (3.3V or 5V) 3.3/5.0
UVLO YES
Overcurrent (OCPorOCL) None
Temperature Detection Temperature Detection Function
Fault Signal Output YES
3 Shunt Support NO
Bootstrap Diode Built-in
Simultaneous On-state Protection NO
Reg Output YES

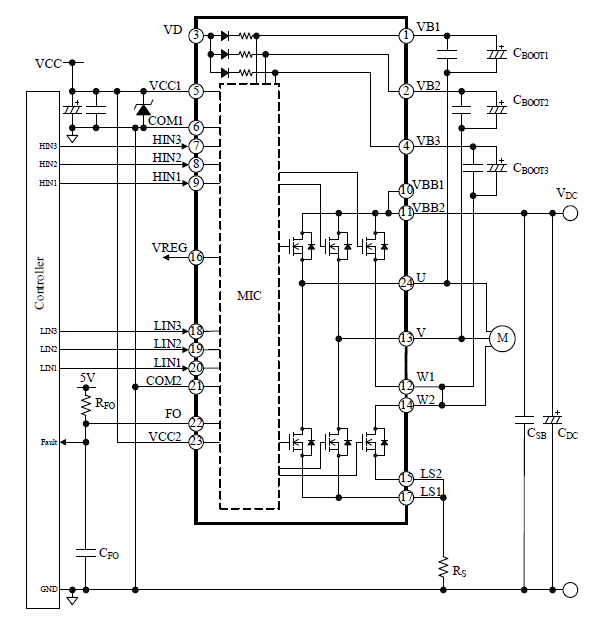

Block Diagram

Block Diagram

Pin Configuration Definitions

Pin Configuration Definitions
