ACTIVE

SCM1242MA

Package Image

Package : DIP33

RoHS : YES

Data Sheet(669KB)
Check Online Stock

The SCM1242MA is a high voltage 3-phase motor driver in which transistors, pre-drive circuits, and bootstrap diodes with current-limiting resistors are highly integrated. The product can run on a 3-shunt current detection system and optimally control the inverter systems of medium-capacity motors that require universal input standards.

Data Download

Design Support

  • Technical Documents
  • Tools / Models

Technical Documents

Tools / Models

Features

    • Pb-free (RoHS Compliant)
    • Low Noise, High Efficiency
      (Sinusoidal Current Waveform)
    • Reduced Number of Parts Achieved by Built-in Bootstrap Diodes
    • Hall Element and Hall IC Inputs
    • Application-specific Optimal Settings with External Signals:
      – Motor Speed
      – Phase Adavance Angle
      – Motor Direction
      – User-settable Motor Lock Detection
       (Enabled or Disabled)
    • 5 V Reference Voltage Output
       (Used for Driving Hall Elements etc.)
    • Fault Signal Output at Protection Activation (FO Pin)
    • Thermal Shutdown (TSD)
    • Protections Include:
      – VREG Pin Undervoltage Lockout (UVLO_REG)
      – Undervoltage Lockout for Power Supplies
       VBx Pin (UVLO_VB)
       VCC Pin (UVLO_VCC)
      – Overcurrent Limit (OCL)
      – Overcurrent Protection (OCP)
      – Motor Lock Protection (MLP)
      – Reverse Rotation Detection
      – Hall Signal Abnormality Detection

Application

  • Refrigerator Compressor Motor
  • Air Conditioner Compressor Motor
  • Washing Machine Main Motor
  • Fan Motor
  • Pump Motor

Specifications

Type Power IC
Breakdown Voltage 600 V
Output Current 15.0 A
RDS(ON) max./
VCE(SAT) typ. 		1.7V
Output Element IGBT
Input Threshold 3.3/5.0 V
UVLO YES
Overcurrent (OCP or OCL) OCP
Temperature Detection Thermal Shutdown
Fault Signal Output YES
3 Shunt Support YES
Bootstrap Diode Built-in
Simultaneous On-state Protection YES
Reg Output NO
Package Weight (Typ.) 10.8 g
Automotive Qualified NO

Typical Application

Typical Application

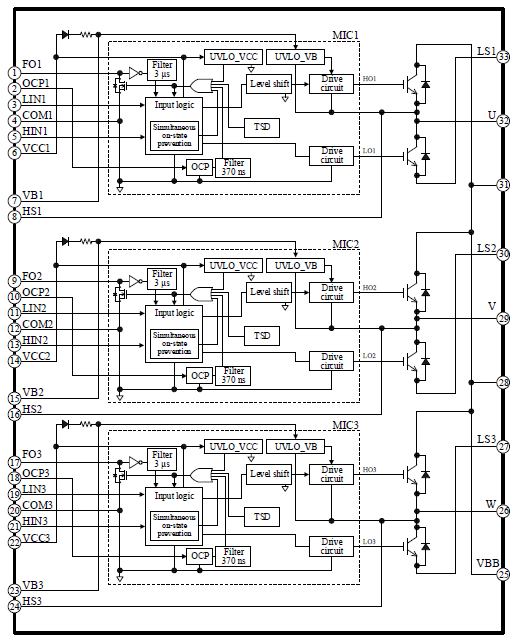

Block Diagram

Block Diagram

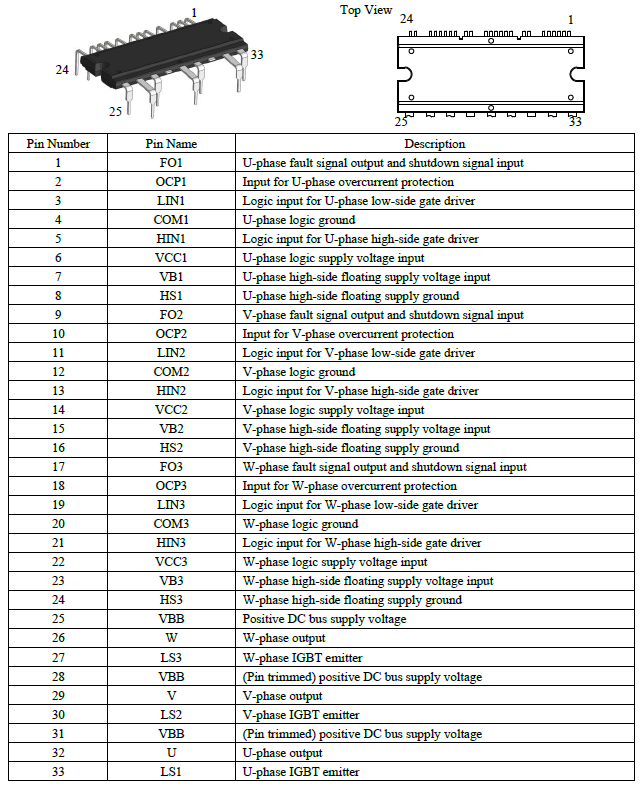

Pin Configuration Definitions

Pin Configuration Definitions

Physical Dimensions

Physical Dimensions
