ACTIVE
SLA6805MH
Package : ZIP23 (with heatsink)
RoHS : YES
The SLA6805MH is a high voltage 3-phase motor driver in which transistors and pre-drive circuits are highly integrated. Supplied in a ZIP23 package (heatsink type) with selectable leadforms, the SLA6805MH offers excellent mountability to a wide range of applications. The product can optimally control the inverter systems of low - to medium - capacity motors.
Data Download
Design Support
- Technical Documents
- Tools / Models
Technical Documents
Tools / Models
Features
-
・CMOS-compatible Input (3.3V or 5V)
・Bare Lead Frame: Pb-free (RoHS Compliant)
・Fault Signal Output
・Shutdown Function
・Adjustable OCP Hold Time
・Protections Include:
Undervoltage Lockout for Power Supply
VBx Pin (UVLO_VB): Auto-restart
VCC1 Pin (UVLO_VCC1): Auto-restart
VCC2 Pin (UVLO_VCC2): Auto-restart
Overcurrent Protection (OCP): Auto-restart
Application
For motor drives such as:・Fan Motor and Pump Motor for Washer and Dryer
・Fan Motor for Air Conditioner
・Fan Motor for Air Purifier and Electric Fan
Specifications
| Type | Power IC |
|---|---|
| Breakdown Voltage | 600 V |
| Output Current | 3.0 A |
|
RDS(ON) max./ VCE(SAT) typ. |
1.75V |
| Output Element | IGBT |
| Input Threshold | 3.3/5.0 V |
| UVLO | YES |
| Overcurrent (OCP or OCL) | OCP |
| Temperature Detection | |
| Fault Signal Output | YES |
| 3 Shunt Support | NO |
| Bootstrap Diode | |
| Simultaneous On-state Protection | NO |
| Reg Output | NO |
| Package Weight (Typ.) | 4.8 g |
| Automotive Qualified | NO |
Typical Application
Block Diagram

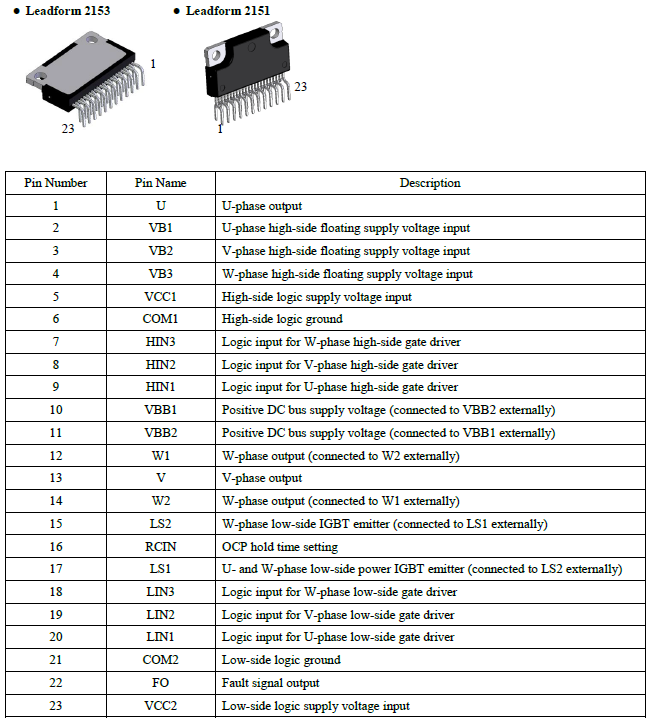

Pin Configuration Definitions
Physical Dimensions
