SPF6001

Package Image

Package : HSOP16

RoHS : YES

Data Sheet(299KB)
Check Online Stock

SPF6001 is a 1 chip IC in a SPF 16 package. Pre-driver voltage is 150V. This product is suitable for 42V applications. During normal operation, boot circuit operates with gate voltage supply. However, when VBB voltage is low(≦10V), a stable gate voltage can be created by driving a charge pump circuit.

Data Download

Design Support

  • Technical Documents

Technical Documents

Features

    ・Automotive qualified
    ・150V Bootstrap circuit operation
    ・Charge pump circuit/ built-in auxiliary power supply
    ・Sanken proprietary surface mount package

Application

3 Phase motor driver (EPS, DBW, pump, fan motor, etc)

Specifications

Supply Voltage 35.00 V
Circuit Current 4.00 mA
Output Current
Output Leakage Current
Output On Resistance
Input Voltage -0.3 to 6.0 V
Power Dissipation 2.97 W
Junction Temperature -40 to 150 ℃
Operating Ambient Temperature -40 to 105 ℃
Protection Function
Package Weight (Typ.) 0.87 g
Automotive Qualified YES

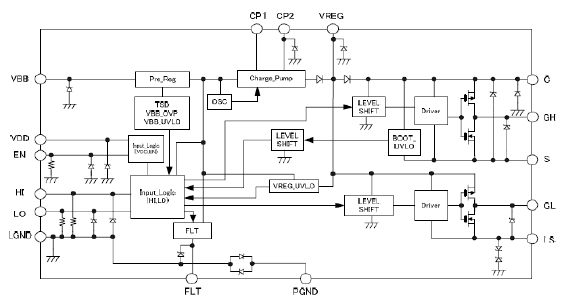

Block Diagram

Block Diagram
