On Board Charger

xEV consists of a high voltage battery and charging system. On-board chargers provide a means to charge batteries from the outlets in homes and public charging stations.

* Click the colored block to see the applicable parts in list form.

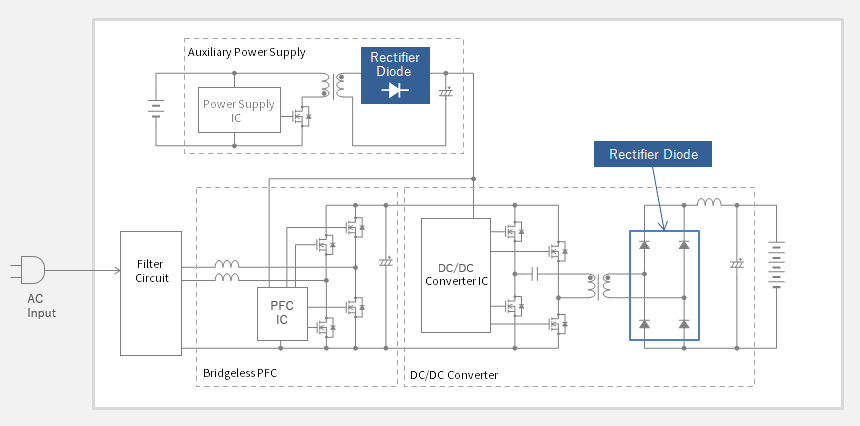

On Board Charger Block Diagram

Auxiliary Power Supply_Secondary-SideRectifier Diode DC/DC Converter_Rectifier Diode DC/DC Converter_Rectifier Diode
