OBSOLETE
SLA6870MZ
SLA6870MZ incorporates 500V3A IGBT, MOSFET(Built-in FRD) for the 3-phase bridge, pre-drive ICs with protection functions such as UVLO (undervoltage lock out), OCP (over current protection), TSD (thermal shutdown), etc., and bootstrap diodes with limiting resistors into 1 package. A package is Single Inline Package with AL Fin.
Design Support
Related Documents
Features
-
Built-in boot diode with 210Ω limiting resistor, built-in overcurrent protection circuit (OCP), overcurrent protection with off-time period adjustable by an external capacitor, overcurrent limiting operation, built-in thermal shutdown circuit (TSD), externally controllable shutdown operation, SIP package.
Application
-
For driving fan motors, air purifier fan motors, and dryer fan motors
Specifications
Type | Power IC |
---|---|
Breakdown Voltage | 500 V |
Output Current | 3.0 A |
RDS(ON) max./ VCE(SAT) typ. |
1.7Ω |
Output Element | MOSFET |
Input Threshold | 5 V |
UVLO | YES |
Overcurrent (OCP or OCL) | OCP |
Temperature Detection | Thermal Shutdown |
Fault Signal Output | YES |
3 Shunt Support | NO |
Bootstrap Diode | |
Simultaneous On-state Protection | NO |
Reg Output | NO |
Package Weight (Typ.) | g |

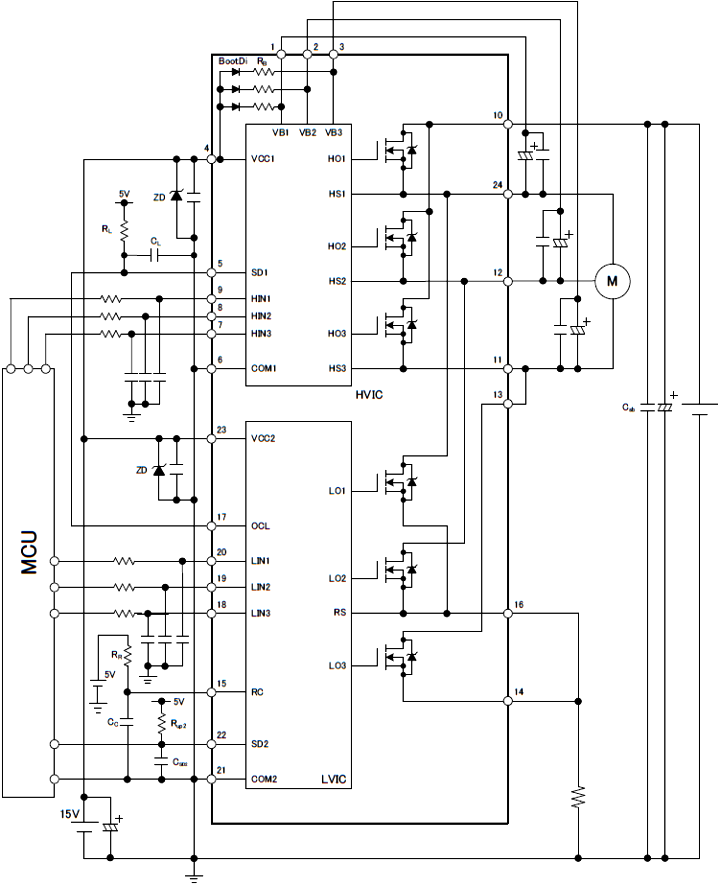

Typical Application

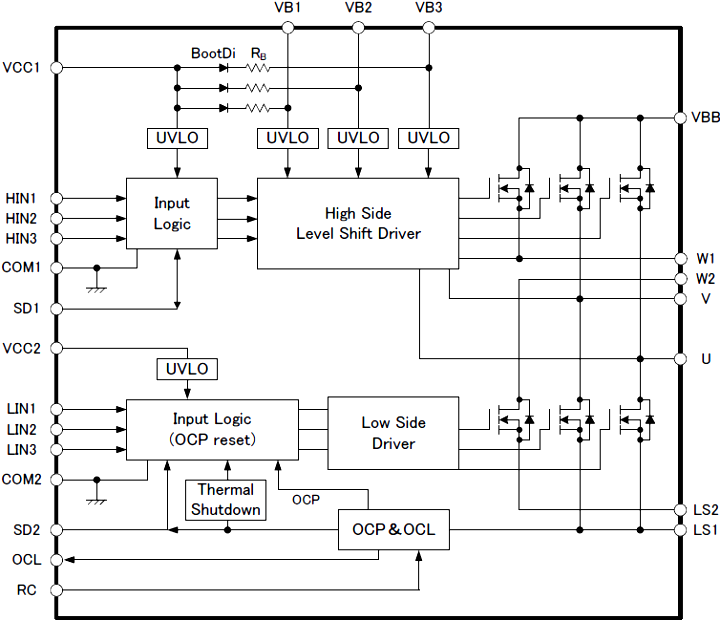

Block Diagram

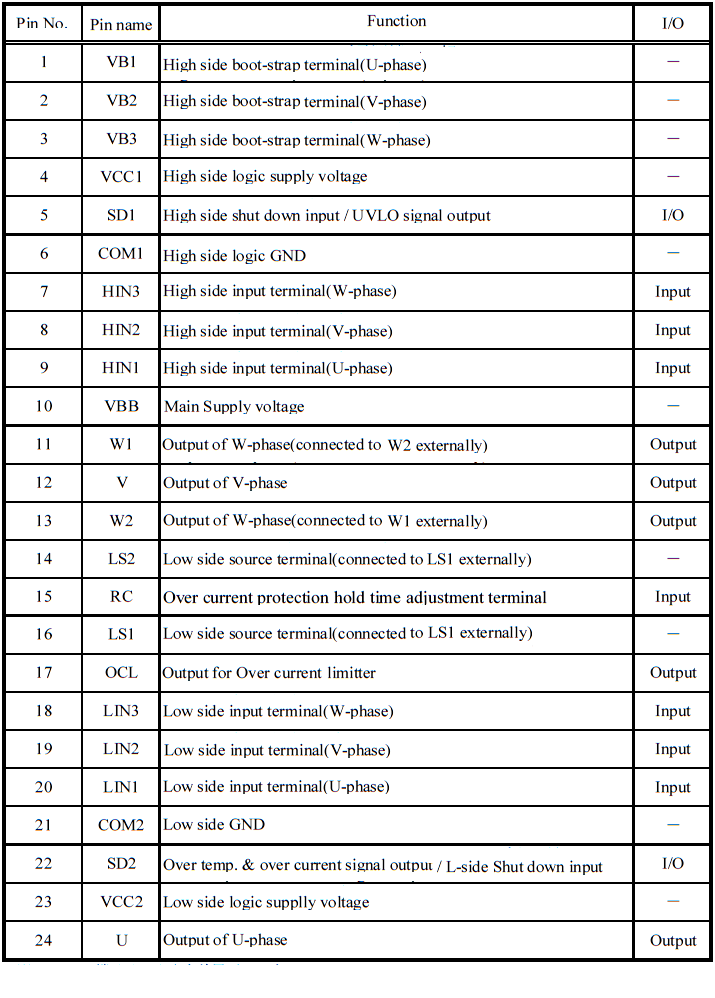

Pin Configuration Definitions
Physical Dimensions
