ACTIVE

SMA6860MH

The SLA6870MH and the SMA/SLA6860MH series are high voltage 3-phase motor driver ICs in which transistors, pre-driver ICs (MICs), and bootstrap circuits (diodes and resistors) are highly integrated.
Selectable ZIP24 packages (fully-molded or heatsink type) with various leadforms enable optimum mountability to a wide range of applications. These products can optimally control the inverter systems of small- to medium-capacity motors.

Design Support

Related Documents

■3D CAD Data
■Other

See More

Close

Features

    ・Built-in Bootstrap Diodes with Current Limiting Resistors  (210Ω)
    ・CMOS-compatible Input (5V)
    ・Shutdown Function
    ・Bare Lead Frame: Pb-free (RoHS Compliant)
    ・Protections Include:
     Undervoltage Lockout for Power Supply
      VBx Pin (UVLO_VB): Auto-restart
      VCC1 Pin (UVLO_VCC1): Auto-restart
      VCC2 Pin (UVLO_VCC2): Auto-restart
     Overcurrent Limit (OCL)
     Overcurrent Protection (OCP):
      Auto-restart with Adjustable OCP Hold Time
     Thermal Shutdown (TSD): Auto-restart

Application

    ・Fan Motor and Pump Motor for Washer and Dryer
    ・Fan Motor for Air Conditioner
    ・Fan Motor for Air Purifier and Electric Fan

Specifications

Type Power IC
Breakdown Voltage 500.00 V
Output Current 1.0 A
RDS(ON) max./
VCE(SAT) typ.
V
Output Element MOSFET
Input Threshold (3.3V or 5V) 5
UVLO YES
Overcurrent (OCPorOCL) OCP/OCL
Temperature Detection Thermal Shutdown
Fault Signal Output YES
3 Shunt Support NO
Bootstrap Diode Built-in
Simultaneous On-state Protection NO
Reg Output NO

Block Diagram

Block Diagram

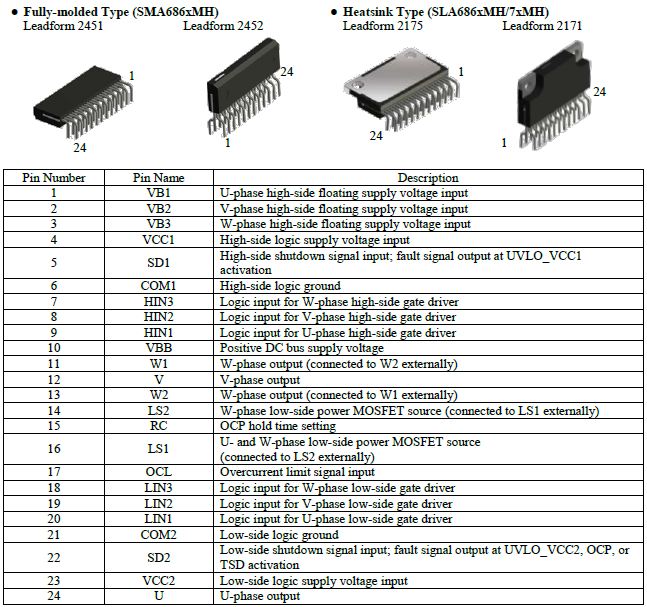

Pin Configuration Definitions

Pin Configuration Definitions
