OBSOLETE
SX68002MH
Package : SOP36
RoHS : YES
SX68002MH features a 27pin flat package, with power MOSFET (rated 500V 1.5A) for the 3-phase full bridge. Includes various protection functions (UVLO: undervoltage lock out, OCP: over current protection, TSD: thermal shutdown, OCL: current limiting), pre-drive IC with FO terminal output voltage, and bootstrap diodes with limiting resistors incorporated into 1 package. Full mold package with pin pitch of 1.2mm.
Data Download
Design Support
- Technical Documents
- Tools / Models
Technical Documents
Tools / Models
Features
-
・Built-in boot diode with 60Ω limiting resistor
・Built-in undervoltage lock out circuit (UVLO)
・Built-in overcurrent protection circuit (OCP)
・Built-in thermal shutdown function (TSD)
・Built-in current limiter function (OCL)
・Error (FO) pin with shutdown input function
・Built-in regulator output of 7.5V
Application
・fan motor driver for airconditioners, etc (built-in motor)Specifications
| Type | Power IC |
|---|---|
| Breakdown Voltage | 500 V |
| Output Current | 1.5 A |
|
RDS(ON) max./ VCE(SAT) typ. |
4.0Ω |
| Output Element | MOSFET |
| Input Threshold | 3.3/5.0 V |
| UVLO | YES |
| Overcurrent (OCP or OCL) | OCP |
| Temperature Detection | Thermal Shutdown |
| Fault Signal Output | YES |
| 3 Shunt Support | NO |
| Bootstrap Diode | Built-in |
| Simultaneous On-state Protection | NO |
| Reg Output | YES |
| Package Weight (Typ.) | |
| Automotive Qualified |

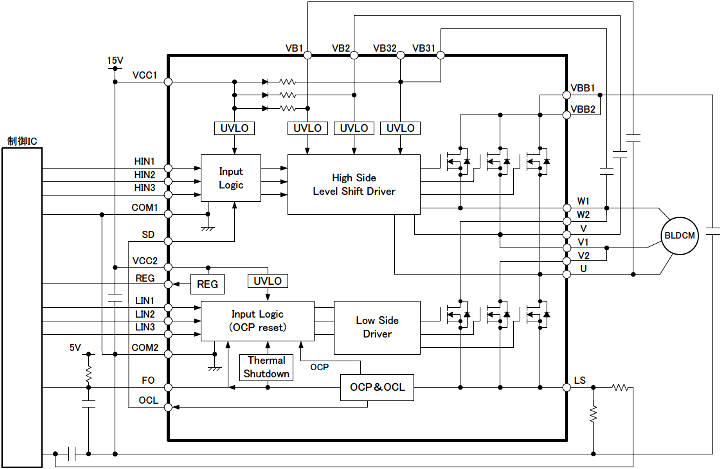

Typical Application

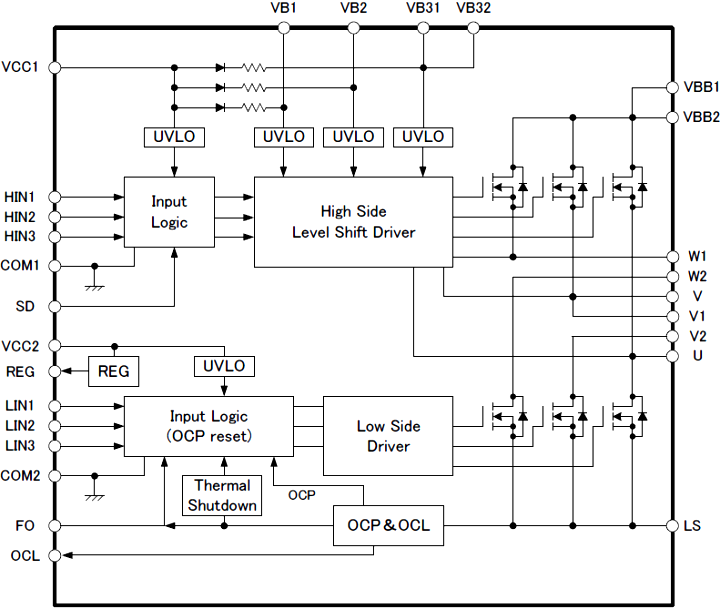

Block Diagram

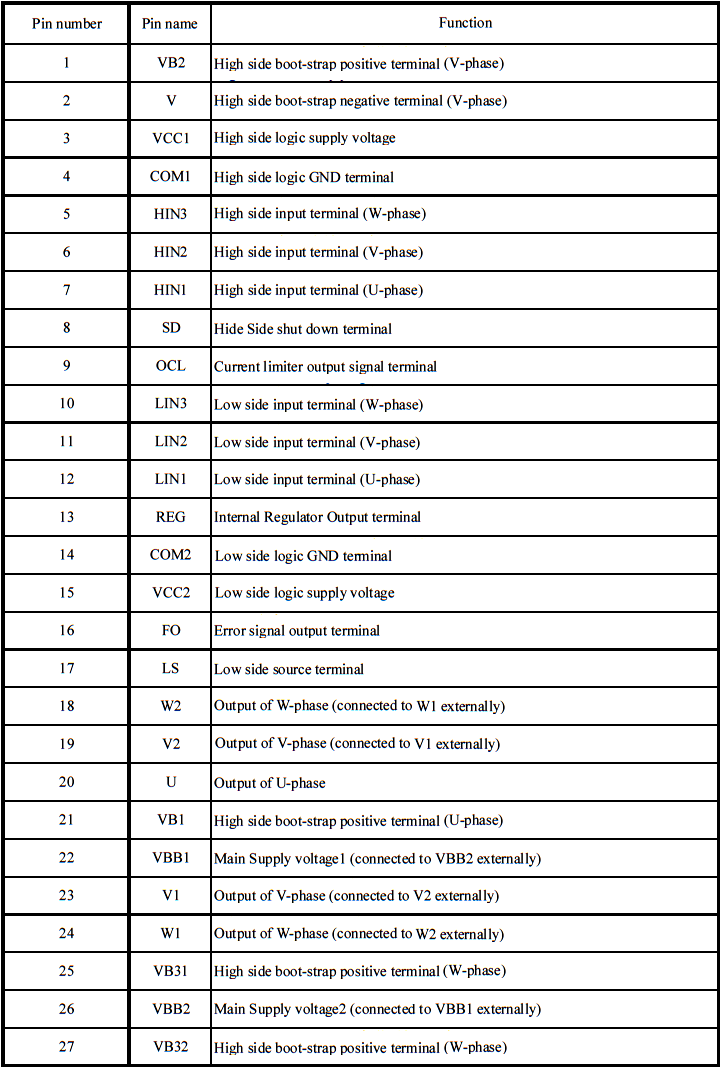

Pin Configuration Definitions
Physical Dimensions
