SX68003MH
Package : SOP36
RoHS : YES
The SX6800xMH series are high voltage 3-phase motor driver ICs in which transistors, a pre-driver IC (MIC), and bootstrap circuits (diodes and resistors) are highly integrated. These products can optimally control the inverter systems of small- to medium-capacity motors that require universal input standards.
Data Download
Design Support
- Technical Documents
- Tools / Models
Technical Documents
Tools / Models
Features
-
・Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω)
・CMOS-compatible Input (3.3 V or 5 V)
・Bare Lead Frame: Pb-free (RoHS Compliant)
・Fault Signal Output at Protection Activation (FO Pin)
・High-side Shutdown Signal Input (SD Pin)
・Protections Include:
Overcurrent Limit (OCL): Auto-restart
Overcurrent Protection (OCP): Auto-restart
Undervoltage Lockout for Power Supply
High-side (UVLO_VB): Auto-restart
Low-side (UVLO_VCC): Auto-restart
Thermal Shutdown (TSD): Auto-restart
Application
・Fan Motor for Air Conditioner・Fan Motor for Air Purifier and Electric Fan
Specifications
| Type | Power IC |
|---|---|
| Breakdown Voltage | 500 V |
| Output Current | 2.5 A |
|
RDS(ON) max./ VCE(SAT) typ. |
2.4Ω |
| Output Element | MOSFET |
| Input Threshold | 3.3/5.0 V |
| UVLO | YES |
| Overcurrent (OCP or OCL) | OCP |
| Temperature Detection | Thermal Shutdown |
| Fault Signal Output | YES |
| 3 Shunt Support | NO |
| Bootstrap Diode | Built-in |
| Simultaneous On-state Protection | NO |
| Reg Output | YES |
| Package Weight (Typ.) | |
| Automotive Qualified |
Typical Application
Block Diagram

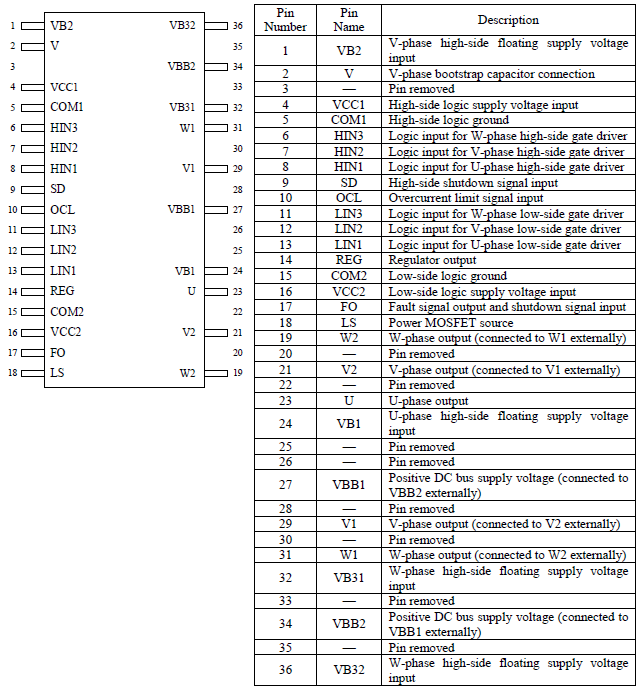

Pin Configuration Definitions
