Not Recommended for New Design

SAE6530P0DA01

SAM265M30AA1

Package Image

Package : DIP29

RoHS : YES

Data Sheet(1.3MB)

The SAE6530P0DA01 is 3-phase motor driver in which output transistors, pre-driver ICs (MICs), bootstrap diodes with current-limiting resistors, and a temperature-sensing thermistor are highly integrated. The IC is suitable for driving 3-phase motor of an automotive high voltage auxiliary equipment system.

Data Download

Design Support

  • Technical Documents

Technical Documents

Features

    ・AEC-Q100 Qualified
    ・Bare Lead Frame: Pb-free (RoHS Compliant)
    ・Isolation Voltage: 2500 V (for 1 min)
    ・Built-in Thermistor
    ・Built-in Bootstrap Diodes
    ・CMOS-compatible Input (3.3 V or 5 V)
    ・Fault Signal Output at Protection Activation
    ・Shutdown Signal Input
    ・Adjustable OCP Hold Time
    ・Protections Include:
    　Undervoltage Lockout for Power Supply
    　 VBx Pin (UVLO_VBx): Auto-restart
    　 VCCxH Pin (UVLO_VCCxH): Auto-restart
    　 VCCL Pin (UVLO_VCCL): Auto-restart
    　Overcurrent Protection (OCP): Auto-restart　　

Application

For driving 3-phase motor of the following high voltage auxiliary equipment system such as electrified vehicles (xEV):
・Electric Compressor
・Electric Oil Pump

Specifications

Power Supply Voltages 500 V
Output Current 30 A
Supply Voltage 20.00 V
Power Dissipation 125 W
Junction Temperature -40 to 150°C
Operating Case Temperature -40 to 120°C
Protection Function UVLO、OCP
Output Power Device IGBT
Package Weight (Typ.)
Automotive Qualified YES

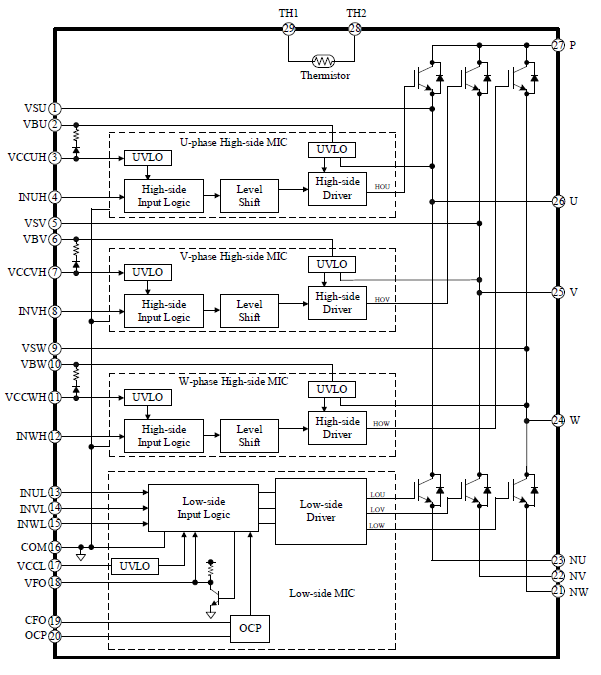

Block Diagram

Block Diagram

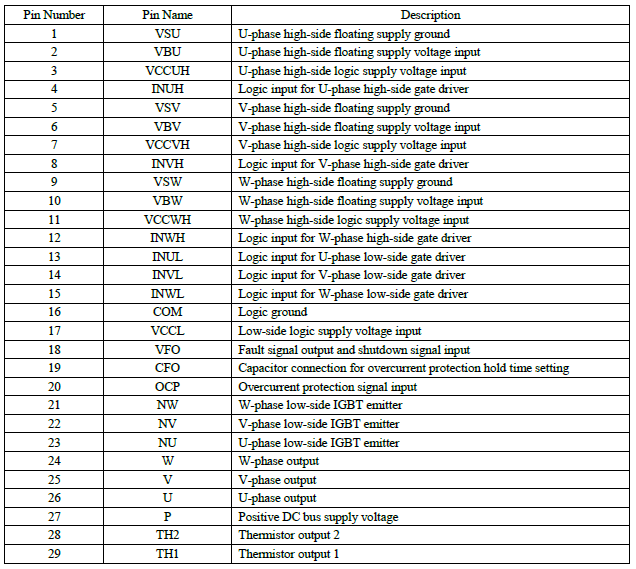

Pin Configuration Definitions

Pin Configuration Definitions
