OBSOLETE
SPF5017
Package : HSOP20
RoHS : YES
High-side power switch IC
Data Download
Design Support
- Technical Documents
Technical Documents
Features
-
・Internal current sense resistor
・High accuracy current monitor output (sample & hold function)
・Built-in overcurrent and thermal protection circuits
Specifications
| Supply Voltage | 32.00 V |
|---|---|
| Output Current | 2.0 A |
| Power Dissipation | 2.4 W |
| Junction Temperature | -40 to 150 ℃ |
| Protection Circuit | OCP, TSD |
| Features Included | High accuracy current monitor output (sample & hold function) |
| Output ON Resistance (25℃) | 0.14 Ω |
| Package Weight (Typ.) |
Remarks

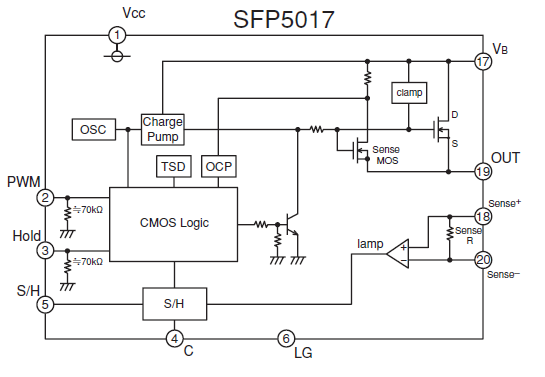

Built-in current sense resistorBlock Diagram
