OBSOLETE
SPF5002A
Package : HSOP16
RoHS : YES
Low-side power switch IC
Data Download
Features
-
・DMOS 4ch output
・Allows ON/OFF using C-MOS logic level ・Built-in overcurrent, overvoltage and thermal protection circuits.
Application
TransmissionSpecifications
| Supply Voltage | 40.00 V |
|---|---|
| Output Current | 1.8 A |
| Power Dissipation | 2.0 W |
| Junction Temperature | -40 to 150 ℃ |
| Protection Circuit | OCP, OVP, TSD |
| Features Included | ON/OFF |
| Output ON Resistance (25℃) | 0.60 Ω |
| Package Weight (Typ.) | 0.87 g |

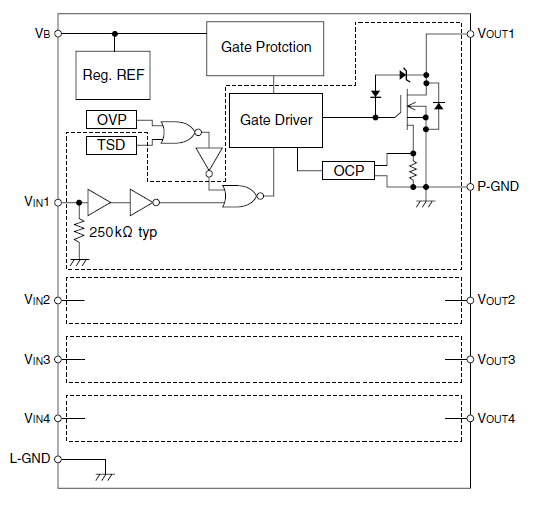

Block Diagram
Physical Dimensions
