OBSOLETE

STR-X6750B

Package Image

Package:TO3PF-7L

The STR-X6700 series products are power ICs for quasi-resonant type switching power supplies, incorporating a power MOSFET and a controller IC, The product achieves highefficiency and low noise power supply systems by the quasi-resonant operation and the bottom-skip quasi-resonant operation.
A compact 6 pin full mold package (TO-3P, Sanken Electric designation: 3GR-X), helps realize low component count, and high performance-to-cost power supply.

 Sanken will assist you in creating a power supply trans
 design using this product. Please fill out the form with
 your power supply specifications.
 Click Here

Features

    ・Multi-Mode Control
     -In Standby (Under Standby Load Conditions):
      UVLO Intermittent Oscillation by low output voltage --- Switched by Standby Signal, or
      Auto Burst-Oscillation --- Switched Automatically
     -Under Low to Middle Load Conditions: Bottom-Skip Quasi-Resonant Operation (Bottom-Skip QR)
     -Under Middle to Rating (or Heavy) Load Conditions: Quasi-Resonant Operation (QR)
    ・Current-mode control
    ・Built-in PWM Oscillator
    ・Soft-Start Function
    ・Step-Drive Function
    ・Built-in Maximum ON Time Limitation Circuit
    ・Input Compensation at Overcurrent
    ・Built-in Avalanche Energy Guaranteed High-Voltage Power MOSFET
    ・Protection functions:
     Overcurrent protection (OCP): pulse by pulse
     Overload protection (OLP): latch shutdown
     Overvoltage protection(OVP): latch

Application

    ・Digital appliances
    ・White goods
    ・Office automation (OA) equipment
    ・Industrial equipment
    ・Telecommunication equipment
    ・Other S.M.P.S

Specifications

Control Method Quasi-Resonant
Type Power IC
Output Current W
RDS(ON) (max.) 0.620 Ω
VDSS (min.) 650 V
VCC (max.) 35 V
Oscillating Frequency(typ.) ― kHz
OCP YES
OLP Latch
OVP Latch
Brown-in / out NO
TSD None
Power Consumption at No Load

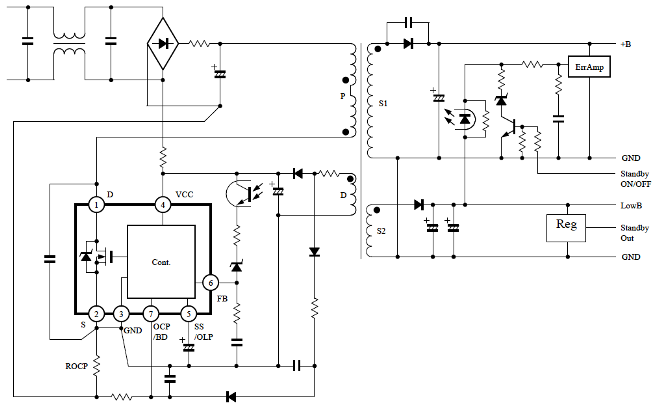

Typical Application

Typical Application

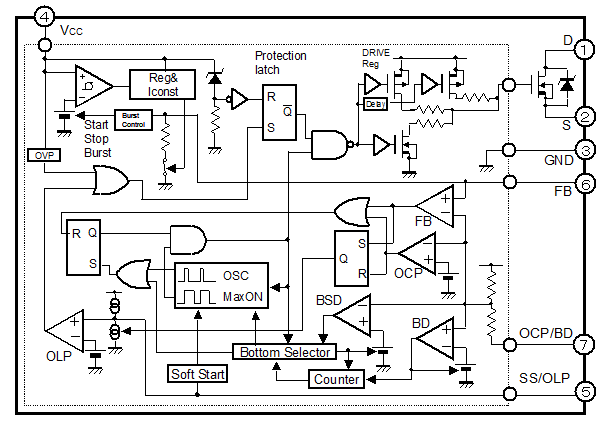

Block Diagram

Block Diagram

Selection Guide

STR-X6700SeriesLineupPartnameBurstoperationBottomskipQRSTR-X67xxNoYesSTR-X67xxBNoNoSTR-X6729
STR-X67xxFYesNoSTR-X67xxNNoYes

Questions or Comments?

Please feel free to contact us if you cannot find the desired product from the lineup.
