BR200 Series

[Not Recommended for New Design]


Package Name:Power Module type


Input Voltage 12 VDC system
Output Power 7.5W to 96W
Output Current 10A, 20A

BR200 is a non-isolated step down type DC/DC converter module, developed as a POL converter.
Major components, including inductors, are built into the product.
The product delivers stable voltage, with fast response to rapidly changing loads.

Features

  • Responsive to very high speed loads. Delivers stable voltage against fast variable loads.
  • High Efficiency: 89.9%typ (Io=7A,Vo=1.5V)
  • Improved soldering, with use of edge through hole.
  • Low height achieved by using high frequency switching technology 4.2mmH
  • Circuit Type: Synchronized rectifying type stepdown chopper
  • Overcurrent Protection Function: Hiccup
  • Soft Start Function

Application

  • Communication equipment
  • Server
  • IC tester
  • Semiconductor manufacturing equipment
  • Broadcasting equipment
  • FA equipment

Package



  • Package Name: Surface Mount Type (20.32×11.43×4.20mm)
  • Package Name: Surface Mount Type (33.02×13.46×4.20mm)

Specifications

Part Number Data Sheet Package Minimum Input Voltage
(V)		 Maximum Input Voltage
(V)		 Minimum Output Voltage
(V)		 Maximum Output Voltage
(V)		 Output Current
(A)		 Operating Frequency
BR200 Surface Mount Type (20.32×11.43×4.2mm) 7 14 0.75 1.65 10 300kHz
BR202 Surface Mount Type (33.02×13.46×4.2mm) 9.0 13.2 0.75 1.65 20 300kHz
BR203 Surface Mount Type (33.02×13.46×4.2mm) 9.0 13.2 1.6 5.5 20 400kHz
BR204 Surface Mount Type (20.32×11.43×4.2mm) 10.8 13.2 1.6 5.5 10 600kHz
BR205 Surface Mount Type (20.32×11.43×4.2mm) 4.5 7 0.75 3.63 10 600kHz
BR206 Surface Mount Type (33.02×13.46×4.2mm) 4.5 7 0.75 3.63 20 400kHz

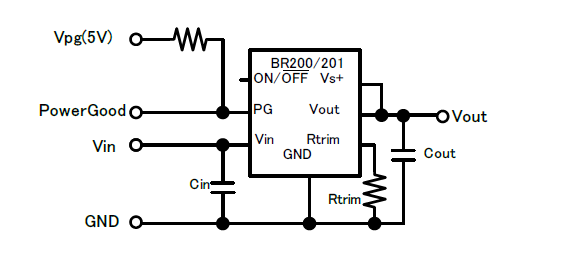

Representative Circuit

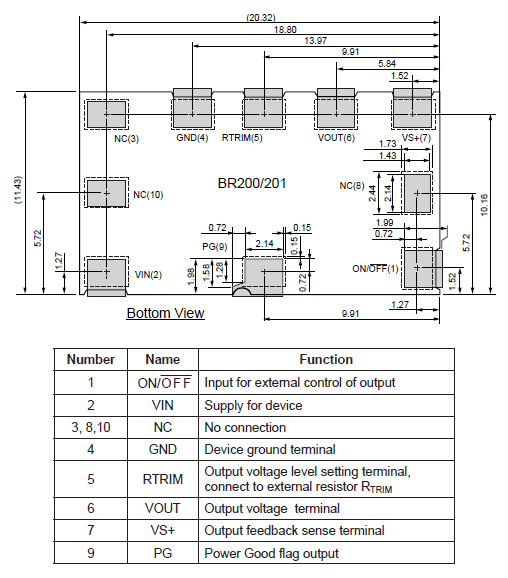

Pin-Out Diagrams
