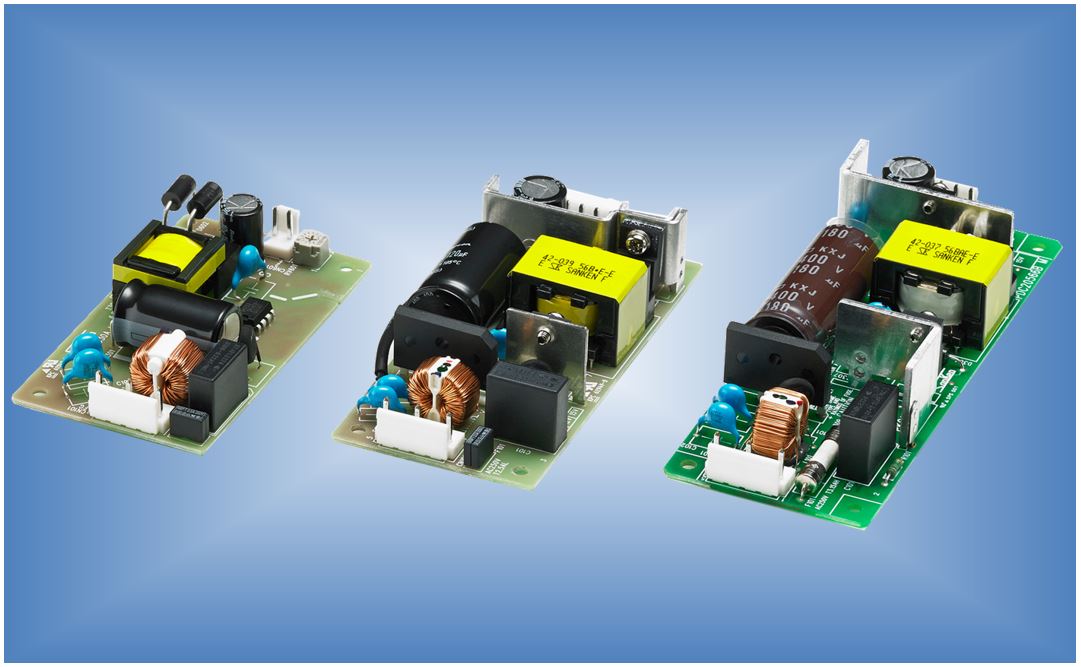

CWB Series

[Obsolete]

General-purpose Switching Power Supply

Input Voltage AC85 to 265V
Output Power 15, 30, 50 W

  • Single output PCB type (with optional chassis cover)
  • Market leading position for low standby power

▶ Download 3D CAD Data
▶ Safety Standards and their Marks (PDF)

Features

  • Product lineup:

    Output power: 15W/30W/50W (three models)
    Output voltage: 5V/12V/15V - Supports a wide variety of needs

  • Best suited to control system power supply due to low standby power

  • Safety standard

    UL60950-1, c-UL (CSA60950-1), EN60950-1
    120 x 61 x 190 (mm)

  • High efficiency, low noise and low leakage due to Sanken's proprietary IC

  • Options: Chassis, cover

    Realized low price by minimizing variety of models to PCB type and with chassis cover type

Optimum Applications

  • Consumer equipment (OA, AV use)

  • General office equipment

  • Industrial equipment

  • IT terminal, broadcast equipment

  • Others such as control system power supply

Model Names


Model Name Legend : CWB***-○○-△-△
Series Output power(***) Output voltage(○○) Option1(△) Option2(△)
CWB 015：15W
030：30W
050：50W
 05：5V
12：12V
15：15V
 -LC: Chassis and cover

Refer to the Instruction Manual for details on options

Quick Reference

Series CWB
Model CWB015 CWB030 CWB050
Input voltage AC85～265V
Output power 15W 30W 50W
Output voltage 5V / 12V / 15V
Specifications - - -
External view (mm) W 50 50 50
D 87.5 105 132
H 22 26.5 27.1
External view drawing PCB ● ● ●
LC ● ● ●
Technical data 5V ● ● ●
12V ● ● ●
15V ● ● ●
Promotion sheet ●
Operation manual ●

* Refer to the external drawing for the optional size.

Safety

  • Safety

    Observe the following points.

    1. *Read the Operation Manual and Detailed Specifications before use.
    2. *Observe the use conditions, environment, and cautions described in the documents.
