Package : TO263-5L
RoHS : YES
SI-8000FDL series features an oscillation frequency of 300kHz, allowing downsizing of the choke coil. Also, the TO-263-5 package realizes a compact, and highly efficient power supply.
The SI-8001FDL is a chopper type switching regulator IC which is provided with various functions required for the buck switching regulator and built-in functions for overcurrent and thermal shutdown . By using six external components, a highly efficient switching regulator can be composed.
Compact size and large output current of 3.5A
Built-in on/off function (active Low)
Data Download
Design Support
- Technical Documents
Technical Documents
Features
-
・High efficiency 83% (VIN=15V, Io=2A)
・Requires only 6 discrete components
・Built-in reference oscillator (300kHz(TYP)
・Built-in dropping-type-overcurrent and thermal protection circuits
・Built-in ON/OFF function (active low)
・Low Current consumption during off （200uAmax）
Application
・DVD recorders, FPD TV・OA equipment (printers, etc)
・On-board local power supplies
Specifications
| Built-in Power | Power IC |
|---|---|
| Output Method | Variable |
| Output Voltage | 24.0 V |
| Output Current | 3.5 A |
| Input Voltage Range | 4.5 to 40 V |
| Operating Frequency | 300 kHz |
| Synchronous / Asynchronous | Asynchronous |
| Current Mode Control | NO |
| Maximum Input Voltage | 40.00 V |
| Output On / Off | YES |
| Low ESR Capacitor Support | NO |
| Overcurrent Protection | Drooping Type |
| Phase Compensation | Built-in |
| Thermal Protection | YES |
| UVLO | NO |
| Package Weight (Typ.) | |
| Automotive Qualified |

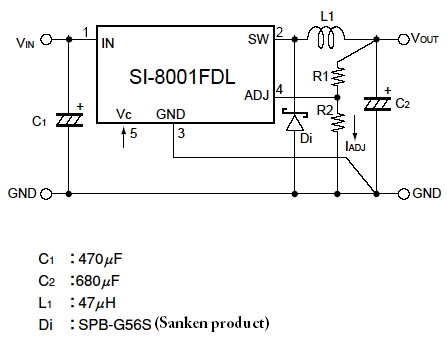

Typical Application

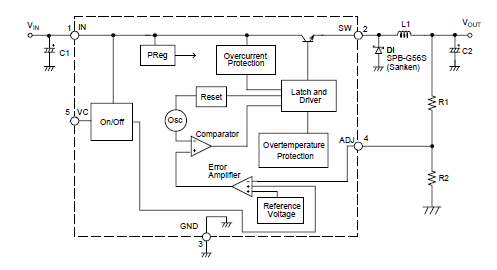

Block Diagram
Physical Dimensions
