ACTIVE

SPF3009

Package Image

Package : HSOP16

RoHS : YES

Data Sheet(566KB)
Check Online Stock

2-output linear regulator

Data Download

Features

    ・Automotive qualified
    ・Single input and dual output (Ch1:　5V/0.4A,Ch2:　3.3V/0.2A) Output voltage accuracy of Ch1 is±2%)
    ・Built-in power on reset function , which allows adjustment of power on reset time using an external element (Resistance:　Rtc/capacitor:　Ctc)
    ・Built-in watch dog timer
    ・Built-in enable function, built-in enable function (low power consumption at OFF)
    ・Built-in drooping type overcurrent protection
    ・Built-in thermal protection circuits (Ch1 only)

Application

Power supply for ECU

Specifications

Input Voltage 35 V
Output Voltage/ Current 5 V/0.4 A, 3.3 V/0.2 A
Power Dissipation 3.00 W
Junction Temperature -40～150 °C
Output Method Fixed
Low ESR Capacitor Support NO
Package Weight (Typ.) 0.87 g
Automotive Qualified YES

Typical Application

Typical Application

Block Diagram

Block Diagram

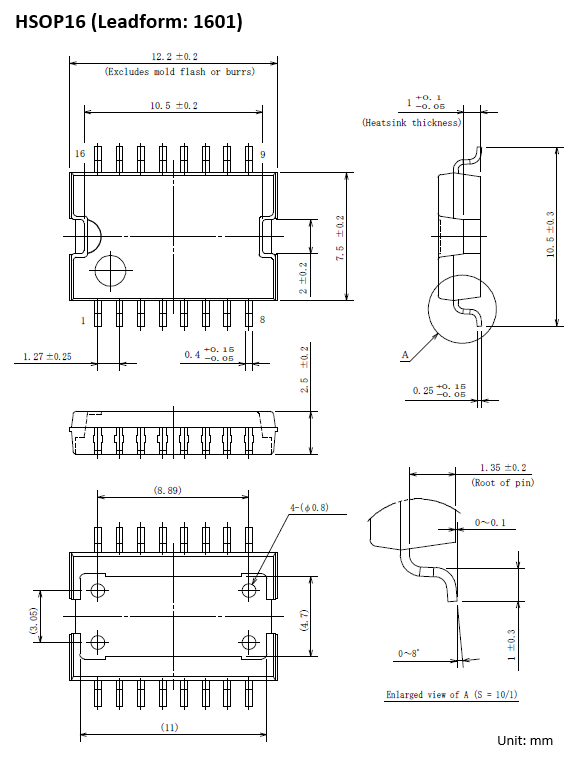

Physical Dimensions

Physical Dimensions
