Package : HSOP44
RoHS : YES
2-phase stepper motor unipolar driver IC. The product has self-excitation PWM current control with fixed off time, with built-in protection features which operates during abnormal motor operation (coil short & open). Use of surface mount package allows the product to be mounted with 1/2 hight, compared to conventional packages(SLA,STA)
Data Download
Design Support
- Technical Documents
Technical Documents
Features
-
・Power supply voltages, VBB: 46V（max）, 10V to 44V normal operating range
・Logic supply voltages VDD: supports 3.0V to 5.5V
・Output current Io：1.5A
・Clock-input method （built-in sequencer）
・Self-excitation PWM current control
・Synchronous PWM chopping function prevents motor noise in Hold mode
・Sleep mode for reducing the IC input current in stand-by state
・Selectable blanking time（1.8us or 3.6us）
・Selectable clock input edge （POS or POS/NEG）
・Selectable protection availability
・44-pin surface mount
Application
・Copy machine・Printer
・Various manufacturing equipment
Specifications
| Excitation Method | 2 phase/4W1-2 phase |
|---|---|
| Maximum Supply Voltage | 44 V |
| Output Current | 1.5 A |
| On-Resistance | 0.25 Ω |
| Input Method | Clock in |
| OCP | YES |
| TSD | NO |
| STP (Simultaneous ON Protection Feature) | YES |
| Open Coil | YES |
| Package Weight (Typ.) | 0.7 g |
| Automotive Qualified | NO |

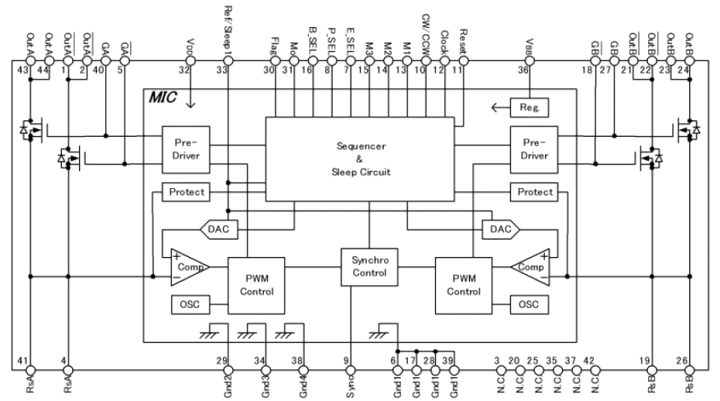

Block Diagram

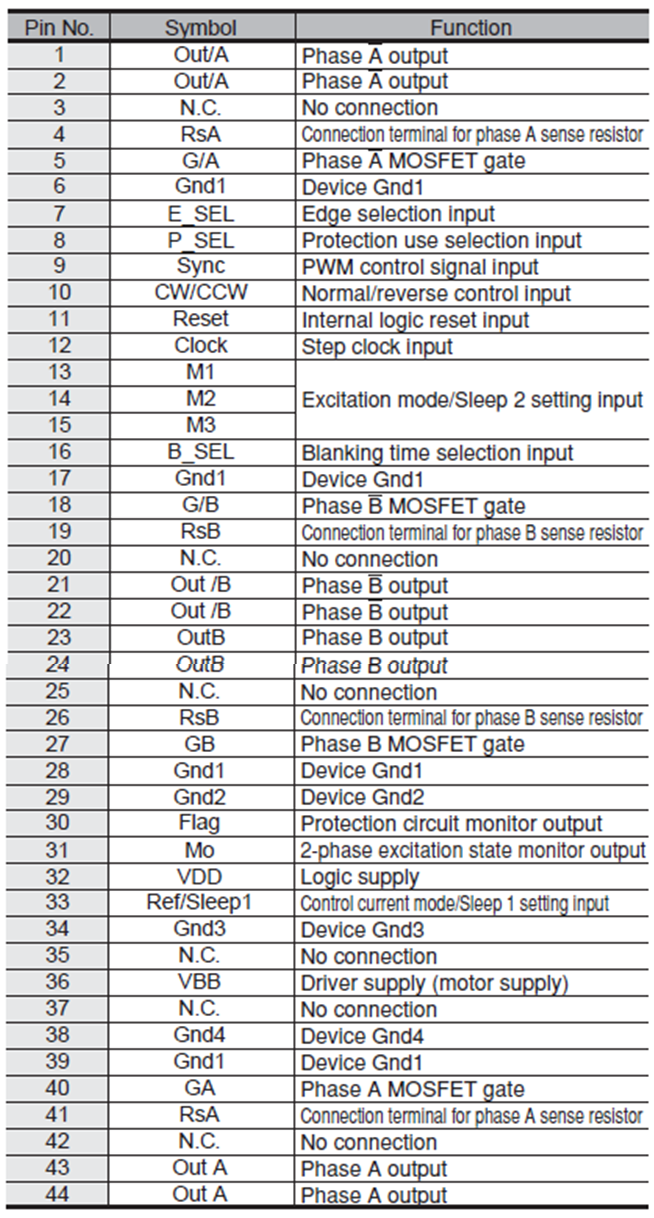

Pin Configuration Definitions
