ACTIVE

SLA7078MPRT

Package Image

Package : ZIP23 (with heatsink)

RoHS : YES

Data Sheet(1.8MB)
Check Online Stock

2-phase stepper motor unipolar IC, self excitation PWM current control with fixed off time. The built-in current sense resistor allows reduction in external components. The series has a built-in protection function which operates during abnormal operation (motor coil opens/shorts ) and thermal shutdown protection as well. Lineup with various rated currents and sequencers are also available.

Data Download

Design Support

  • Technical Documents

Technical Documents

Features

    ・Built-in current sense resistor and built-in protection circuit
    ・Power supply voltages VBB: 46V(max), normal operating range: 10V to 44V
    ・Logic supply voltages VDD: 3.0V to 5.5V
    ・Maximum output current Io: Line up of 1A, 1.5A, 2A, 3A
    ・Supports clock-input-method micro-step drive (built-in sequencer)
    ・Self-excitation PWM current control
    ・Synchronous PWM chopping function prevents motor noise in Hold mode
    ・Sleep mode for reducing the IC input current in stand-by state
    ・ZIP type 23 pin molded package （SLA package）

Application

・Copying machines
・Printers
・Manufacturing equipment

Specifications

Excitation Method 2 phase/4W1-2 phase
Maximum Supply Voltage 44 V
Output Current 3.0 A
On-Resistance 0.18 Ω
Input Method Clock in
OCP YES
TSD YES
STP (Simultaneous ON Protection Feature) YES
Open Coil YES
Package Weight (Typ.) 5.8 g
Automotive Qualified NO

Block Diagram

Block Diagram

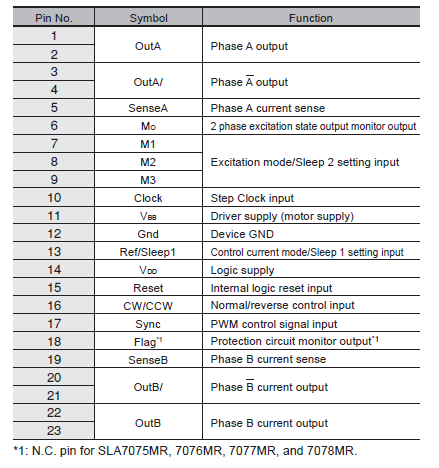

Pin Configuration Definitions

Pin Configuration Definitions

Physical Dimensions

Physical Dimensions
