ACTIVE
STR4A162D
Package : DIP8 (Pin 3 Removed)
RoHS : YES
The STR4A100 series are power ICs for switching power supplies, incorporating a sense MOSFET and a current mode PWM controll IC.
The low standby power is accomplished by the automatic switching between the PWM operation in normal operation and the burst-oscillation under light load conditions.
The product achieves high cost-performance power supply systems with few external components.
Data Download
Design Support
- Technical Documents
- Related Information
Technical Documents
Related Information
Features
-
●Auto Standby Function
No Load Power Consumption < 10 mW
●Operation Mode
Normal Operation PWM Mode
Standby Burst Oscillation Mode
●Current Mode Type PWM Control
●Random Switching Function
●Slope Compensation Function
●Leading Edge Blanking Function
●Build-in Startup Circuit
●Bias Assist Function
●Soft Start Function
●Protections
Overcurrent Protection (OCP) : Pulse-by-Pulse
Overload Protection with timer (OLP) : Auto-Restart
Overvoltage Protection (OVP) : Auto-Restart
Thermal Shutdown Protection : (TSD) Auto-Restart
Application
●White goods●Auxiliary power supply
●Low power AC/DC adapter
●Battery Chargers
●Other SMPS
Specifications
| Control Method | PWM |
|---|---|
| Type | Power IC |
| Output Current | 6 W |
| RDS(ON) (max.) | 24.600 Ω |
| VDSS (min.) | |
| VCC (max.) | |
| Oscillating Frequency(typ.) | |
| OCP | |
| OLP | |
| OVP | |
| Brown-in / out | |
| TSD | Auto Restart |
| Power Consumption at No Load | |
| Package Weight (Typ.) | 0.51 g |
| Automotive Qualified | NO |

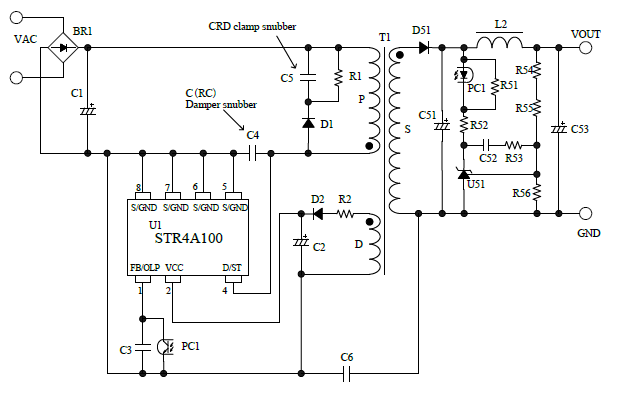

Typical Application

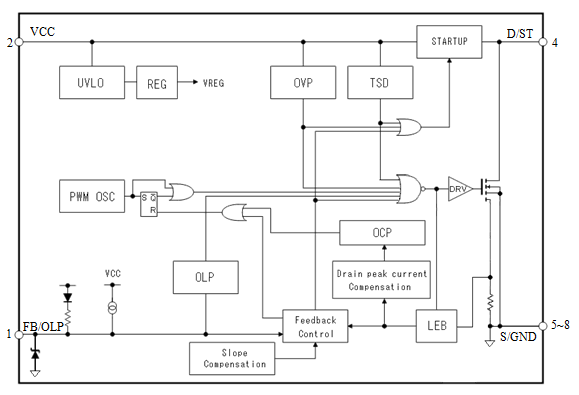

Block Diagram

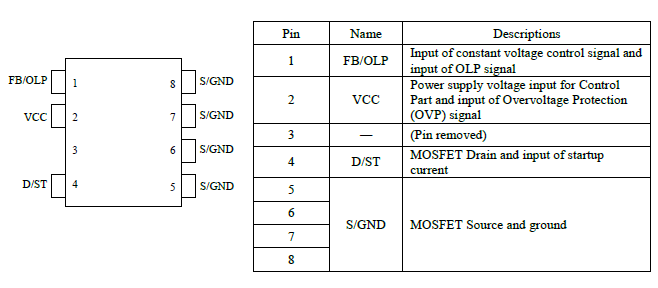

Pin Configuration Definitions
Physical Dimensions
Selection Guide
STR4A100LineupLastletterofpart# S：SOIC8、D：DIP8
| Part number | PWM frequency | Ron | IDLIM(H) |
|---|---|---|---|
| STR4A162S STR4A162D | 65kHz | 24.6Ω | 0.365A |
| STR4A164D | 12.9Ω | 0.520A | |
| STR4A164HD | 100kHz | 0.485A |
