SZ-E10ET415

Package Image

Package : SZ-E10

RoHS : YES

Data Sheet(941KB)
Check Online Stock

The SZ-E10ET415 is a 150 V, 45 A Schottky diode for automotive applications. The product achieves characteristics such as low leakage current and low forward voltage drop, thus providing a high-efficient rectification circuit. Its low thermal resistance package has excellent performance in heat dissipation.

Data Download

Features

    ・Suitable for High Reliability and Automotive Requirement
    ・Low Loss
    ・Bare Lead Frame: Pb-free (RoHS Compliant)
    ・Flammability: Equivalent to UL94V-0
    ・Anode Heatsink Package

Application

High speed switching applications such as:
・DC/DC Converter
・Adapter
・Secondary Rectifier Circuit

Specifications

IF 45.0 A
IFSM 300 A
VRM 150 V
TJ -55～150 ℃
VF 1.100 V
IR 30 μA
H・IR 35.0 mA
Thermal Resistance 0.35 ℃/W
Package Weight (Typ.) 2.6 g
Automotive Qualified YES

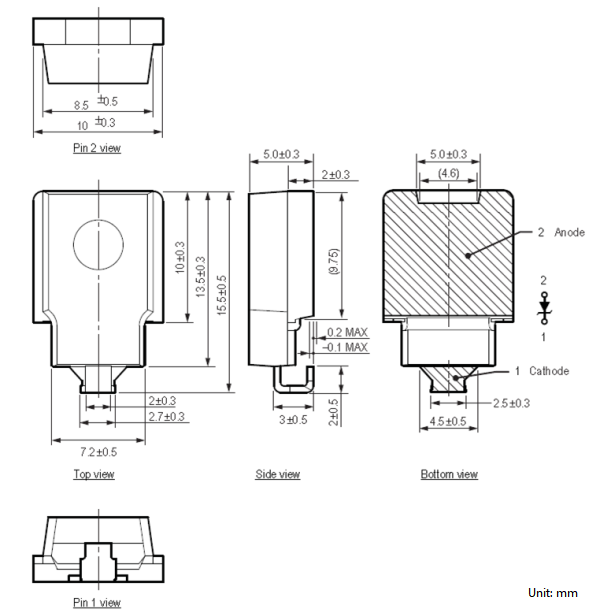

Physical Dimensions

Physical Dimensions
